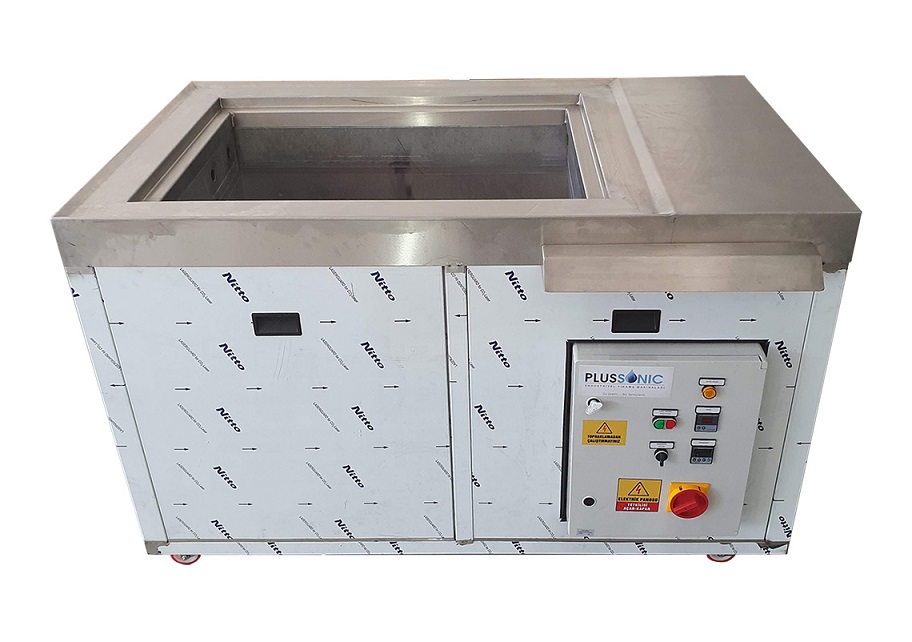

PRO SERIES ULTRASONIC CLEANING MACHINES

  • Models produced for washing volumes in the range of 80-400 liters. Stainless Steel Profile Construction and Stainless steel AISI 316 quality 2 or 2.5 mm washing tank. Ultrasonic cleaning elements are located on the base and / or side surfaces as required. The heating elements are protected in a pocket. Products can be cleaned with basket or hanger / movable busbar.

    Ultrasonic cleaning generators has the following standard features:

    • Front panel with digital display
    • High current and interference protection
    • Heat protection
    • SWEEP function
    • Power control
    • Frequency control
    • Ability to select different cleaning programs according to requirement

    In addition to the standard models listed below, they are manufactured according to customer requirements.




  • Model

    Pro 100

    Pro 150

    Pro 160

    Pro 200

    Pro 250

    Pro 270

    Pro 400

    Washing Tank Dimension

    Length

    500

    600

    800

    800

    1000

    600

    800

    Width

    500

    500

    500

    500

    500

    500

    600

    Water level

    400

    500

    400

    500

    500

    900

    900

    Ultrasonic power (Watt)

    1000

    2000

    2000

    2000

    3000

    3000

    4000

    Number of transducer

    (28 kHz / 40 kHz )

    18 / 20

    36 / 40

    36 / 40

    36 / 40

    54 / 60

    54 / 60

    72 / 80

    Frequency (kHz)

    28 / 40

    28 / 40

    28 / 40

    28 / 40

    28 / 40

    28 / 40

    28 / 40

    Heater (kW)

    6

    6

    6

    6

    12

    12

    18

    Digital thermostat

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Digital timer

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Filling

    1 ̎Valve

    1 ̎Valve

    1 ̎Valve

    1 ̎Valve

    1 ̎Valve

    1 ̎Valve

    1 ̎Valve

    Drainage

    1 ̎Valve

    1 ̎Valve

    1 ̎Valve

    1 ½ ̎Valve

    1 ½ ̎Valve

    1 ½ ̎Valve

    1 ½   ̎Valve

    Basket

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Busbar system

    ---

    ---

    ---

    ---

    ---

    ---

    Optional

    Isolation

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Power control

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Sweep

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    Front panel

    Digital

    Digital

    Digital

    Digital

    Digital

    Digital

    Digital
